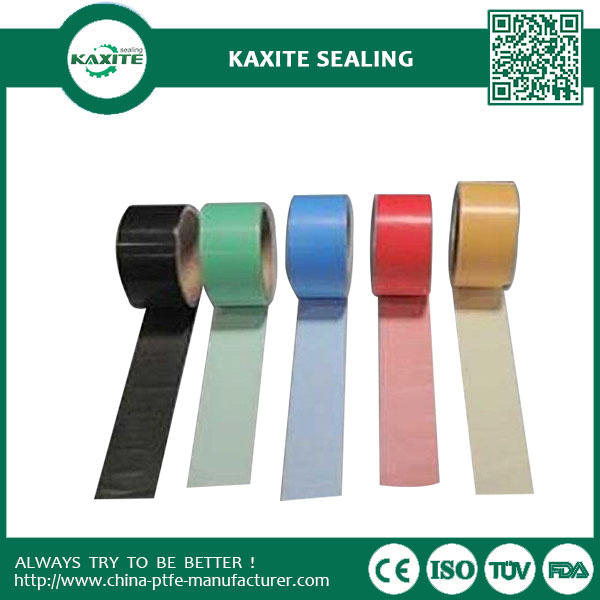

Adhesive Ptfe Teflon Tape Coated With Silicone Chemical Resistant
Product number:Adhesive Ptfe Teflon Tape Coated With Silicone Chemical Resistant
Quick Overview: Place of Origin: China Certification: ISO 9001,ROHS
Send Inquiry
PDF DownLoad
Product Description
Ptfe Teflon Film has the merit of most remarkable anti-voltage intensity, and high breakdown voltage. It is used for capacitor medium,wire insulation, electric appliance, meters insulation, sealing interleaver. Ptfe Teflon Film is made of PTFE resin through green compact,sinter and turning. A kind of directional membrane made of Ptfe Teflon Film through calendar, the crystallilinity is high, molecule direction detection tight arranges, minimum voids percentage, so Ptfe Teflon Film improves a lot ,especially more obvious anti-voltage intensity
3. Specifications
|
Property |
Unit |
High-density |
Semi-density |
Common |
|
Tensile strength |
MPa |
≥30 |
≥20 |
≥10 |
|
Elongation at rupture |
% |
≥30 |
≥60 |
≥100 |
|
1MHz dielectric loss tangent |
|
2.5×10-4 |
-- |
-- |
|
1MHz dielectric constant |
|
average 1.8-2.2 |
- |
-- |
|
Dc breakdown voltage (Normal temperature) |
KV/M |
average 200 |
average 60 |
average 30 |
4. Advantages
1.Minimal Water Absorption
2.Excellent Machining
3.Acid and chemical resistant
4.Good Electrical insulation
5.High working temperatures
6.Low friction
7.Surface protect material
5. Main properties
|
Item |
Thickness |
Thickness allowance |
Width |
Width allowance |
Length |
|
high-density |
0.015mm,0.030mm |
±0.003mm |
30-90mm |
±0.3mm |
≥50mm |
|
semi-density |
0.030mm,0.035mm |
±0.003mm |
60-90mm |
±0.3mm |
≥100mm |
|
common |
0.020mm,0.025mm |
±0.003mm |
60-90+mm |
±2.0mm |
≥50mm |
