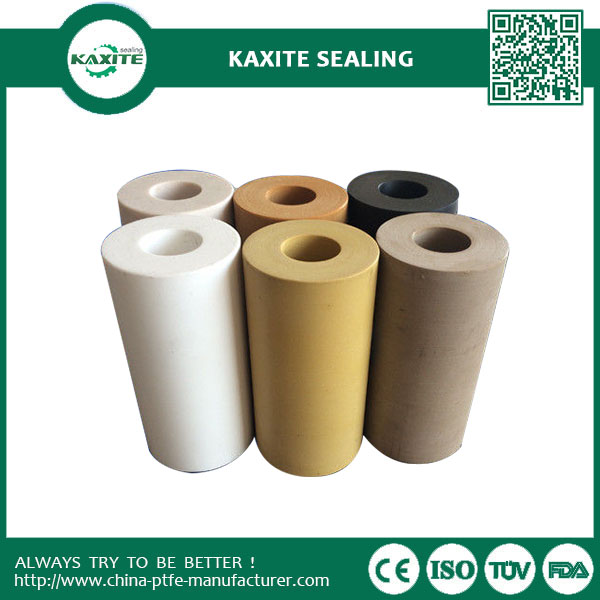

Anti-corrosion Ptfe Teflon Tube Colorful With 55% Bronze & 5% MoS2 Filled
Product number:Anti-corrosion Ptfe Teflon Tube Colorful With 55% Bronze & 5% MoS2 Filled
Quick Overview: Place of Origin: China (Mainland) Certification: SGS,IOS9001,ISO14001
Send Inquiry
PDF DownLoad
Product Description
There are three types of PTFE tube: For a pipe with outside diameter 1~25mm and thickness of wall 0.1~2.5mm, we choose imported polymerized PTFE resin and process it by pressing; For a pipe with outside diameter 25~200mm and thickness of wall 1.5~8mm, we choose suspended PTFE resin and process it by extruding; For a pipe with outside diameter 25~120mm and thickness of wall 5~500 mm, we process it by die pressing.
Specification
|
TYPES |
OUTSIDE DIAMETER(MM) |
WALL THICKNESS(MM) |
LENGTH(MM) |
|
PRESSED tube |
1~25 |
0.1~2.5 |
AS ORDER |
|
EXTRUDED TUBE |
25~200 |
1.5~8 |
AS ORDER |
|
DIE PRESSED TUBE |
25~1800 |
5~500 |
100~300 |
Main properties
|
Properties |
Unit |
Result |
|
Apparent density |
g/cm3 |
2.10-2.20 |
|
Tensile strength (min) |
MPa |
20 |
|
Ultimate elongation (min) |
% |
200 |
|
Residual Lubricant Content (max) |
% |
0.5 |
|
Dialectric Strength (min) |
KV/mm |
10 |
Features
1)PTFE TUBE Anti-corrosion in all kinds of chemicals including nitric acid & aqua fortis.
2)PTFE TUBE Characteristics:Low
friction,Virtually no lubrication requirement,Light weight,Resistant to
corrosion and abrasion, Impact resistance,Stable chemical
properties,Oil resistance,High temperature resistance,Low temperature
resistance,water resistance and so on.
3)PTFE TUBE working temperature:-55~+260°C.
4)PTFE TUBE Electric insulation;good dielectric in mediums.
5)PTFE TUBE filled ptfe tube products(plastic tube pipe) Made of high-speed mixing polytetrafluoroethylene resin and certain filling resin
6)PTFE TUBE Soft and formable,Outstanding chemical properties etc.
|
Glass Fiber: |
Increases compressive strength, rigidity and wear. |
|
Carbon: |
Increases compressive strength, hardness, wear, and load properties. |
|
Graphite: |
Reduces coefficient of friction |
|
Molybdenum Disulfide: |
Increases hardness, stiffness, and wear |
|
Bronze: |
Increases hardness and wear resistance |
|
About the Factory |
|
1.Location: The factory is lacated in Zhejiang county, Jiangsu province which takes one and half an hour by CRH train from Shanghai. It is very convenient for you to visit our factory. |
|
2.Factory advantage: |
|
(1) Professional PTFE manufacture |
|
(2) Member of China fluorine-silicone material industry association and committee member of the filler static sealing committee of Chinese liquid air sealing association |
|
(3) Main products PTFE sheet, rod, tube, film, gasket, packing&PTFE components, also, we can meet your special demand |
|
Tenet: Offering high quality products with competitive price, quick response, on time delivery and perfect after-sale service to our customers, pursue benefits for both sides. |
|
(5) Standard: ISO9001 |
