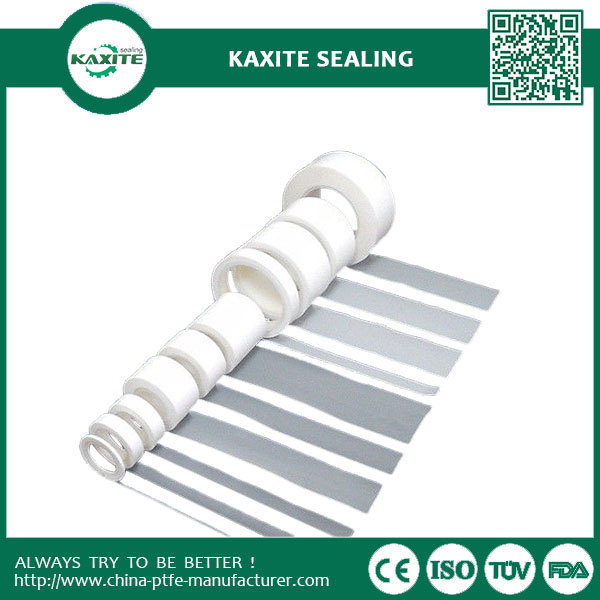

Durable Teflon Film Roll Excellent Aging Resistance Ptfe Teflon Tape
Product number:Durable Teflon Film Roll Excellent Aging Resistance Ptfe Teflon Tape
Quick Overview: Place of Origin: China Certification: ISO 9001,ROHS, ISO14001, FDA
Send Inquiry
PDF DownLoad
Product Description
performance and weathering. It is a non-orientated film and may be pressed to
become orientated or semi-orientated film, i.e. suede pads, seals and lubricating
materials in various media. Ptfe Teflon Film can also become insulating pieces under various frequencies, a capacitor medium, conductor insulator and insulation for electricity meters.
3.Advantages
1.Minimal Water Absorption
2.Excellent Machining
3.Acid and chemical resistant
4.Good Electrical insulation
5.High working temperatures
6.Low friction
7.Surface protect material
4.Specifications
|
Property |
Unit |
High-density |
Semi-density |
Common |
|
Tensile strength |
MPa |
≥30 |
≥20 |
≥10 |
|
Elongation at rupture |
% |
≥30 |
≥60 |
≥100 |
|
1MHz dielectric loss tangent |
|
2.5×10-4 |
-- |
-- |
|
1MHz dielectric constant |
|
average 1.8-2.2 |
- |
-- |
|
Dc breakdown voltage (Normal temperature) |
KV/M |
average 200 |
average 60 |
average 30 |
5.Main properties
|
Item |
Thickness |
Thickness allowance |
Width |
Width allowance |
Length |
|
high-density |
0.015mm,0.030mm |
±0.003mm |
30-90mm |
±0.3mm |
≥50mm |
|
semi-density |
0.030mm,0.035mm |
±0.003mm |
60-90mm |
±0.3mm |
≥100mm |
|
common |
0.020mm,0.025mm |
±0.003mm |
60-90+mm |
±2.0mm |
≥50mm |
6.Filled Material
|
Item |
Properties |
Filled Powder |
|
1 |
improve the resistance of cold flow and the creep properties |
graphite,fiberglass |
|
2 |
improve thelubricity |
MoS2 |
|
3 |
improve the heat conduction performance |
bronze,carbon fiber |
|
4 |
improve the wear resistance |
fiberglass,polybenzoate |
|
5 |
improve the stability and reduce the deformation |
carbon fiber |
