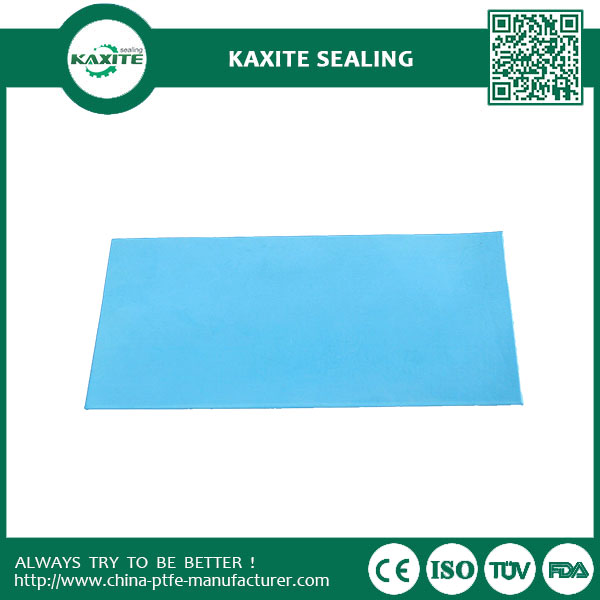

Fibre Glass Teflon PTFE Sheet Recycled PTFE with ISO14001 Certificate
Product number:Fibre Glass Teflon PTFE Sheet Recycled PTFE with ISO14001 Certificate
Quick Overview: Place of Origin: China (Mainland) Certification: ISO9001/14001
Send Inquiry
PDF DownLoad
Product Description
Improved material properties can be achieved by the addition of selected fillers. These fillers extend performance characteristics and allow for wider application - particularly in demanding thermal stability and load support situations. In addition, the frictional and thermal properties of PTFE remain generally unaffected.
The glass-filled PTFE grades, GL25 and GLI5, show improved wear and creep resistance compared with unfilled PTFE, while the chemical resistance is virtually unaffected. B40, a bronze filled compound, has a high thermal conductivity resulting in excellent bearing properties at high speeds, particularly where unhardened shafts are used.
Specifications:
1.Virgin and recycled materials available
2.-Skived Sheet
Min Thickness=0.1mm, Max Thickness=0.5mm, Max Width= 1.2m
Min Thickness=0.5mm, Max Thickness=10mm, Max Width= 2.7m
-Molded Sheet
Min Thickness=1.5mm, Max Thickness=120mm, Min Dimension=300x300mm, Max Dimension= 2000x2000mm
3.Size can be made based on customers' detailed requirement.
Main Features:
1.Heat resistance property---It is able to wok stably between -180°C to +260°C.
2.Excellent non-sticky property---It easier to remove those resin, dopes, oil and other sticky things.
3.Good mechanical property with no distortion and low friction coefficient.
4.Excellent insulation property.
Filled PTFE ring has strong corrosion resistance and friction-resistance,By adding filler such as glass fiber,carbon fiber,copper powder,graphite,asbestos,MOS2,AL2O3,carbon powder,ceramic fiber,metal powder,polyamide,PS,the hardness,compression strength and abrasion resistance of the products is improved ,in addition,it will have good heat conductivity and low heat expansion coefficient.
|
Glass Fiber: |
Increases compressive strength, rigidity and wear. |
|
Carbon: |
Increases compressive strength, hardness, wear, and load properties. |
|
Graphite: |
Reduces coefficient of friction |
| Molybdenum Disulfide: |
Increases hardness, stiffness, and wear |
|
Bronze: |
Increases hardness and wear resistance |
