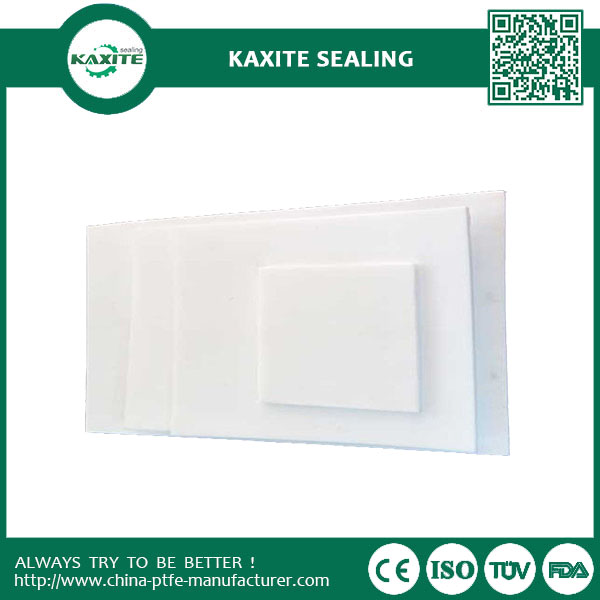

Non-Sticky Teflon Ptfe Sheet Virgin With 0.3mm - 50mm Thickness
Product number:Non-Sticky Teflon Ptfe Sheet Virgin With 0.3mm - 50mm Thickness
Quick Overview: Place of Origin: China (Mainland) Certification: SGS,IOS9001,ISO14001
Send Inquiry
PDF DownLoad
Product Description
1. PTFE sheet is a specialized engineering plastic which has excellent
non-stick properties – it has a surface to which no substance will adhere.
2. PTFE is not affected by almost all chemicals and solvents and has outstanding
dielectric properties, making PTFE sheets the ideal engineering plastic for
electrical and thermal insulators, seals, glide rings, etc.
3. PTFE also has excellent UV resistance and is capable of continuous use
at 260 degrees centigrade.
PTFE SHEET
|
ITEM |
Result |
Unit |
|
Material |
100% Virgin PTFE |
|
|
Apparent density |
2.10-2.30 |
g/ cm3 |
|
Tensile Strength |
22-28 |
Mpa |
|
Ultimate Elongation |
250-300 |
% |
|
Dielectric Strength |
40 |
KV/mm |
|
Tempature Resist |
-180-+260 |
oC |
|
PTFE Molded sheet Thickness |
1.5mm-----120mm |
|
|
Molded sheet Length * width |
Min Dimension=300x300mm, Max Dimension= 2000x2000mm Other sizes based on your requirements |
|
|
PTFE Skived sheet thickness |
0.1mm-----10.0mm |
|
|
PTFE Skived sheet width(Max) |
2700mm |
|
Main Features
1.Heat resistance property---It is able to wok stably between -180°C to +260°C.
2.Excellent non-sticky property---It easier to remove those resin, dopes, oil and other sticky things.
3.Good mechanical property with no distortion and low friction coefficient.
4.Excellent insulation property.
5.Materials like carbon, graphite and glass fiber can be filled.
6.Virgin and recycled materials are available
Main properties
|
Properties |
Unit |
Result |
|
Apparent density |
g/cm3 |
2.10-2.20 |
|
Tensile strength (min) |
MPa |
20 |
|
Ultimate elongation (min) |
% |
200 |
|
Residual Lubricant Content (max) |
% |
0.5 |
|
Dialectric Strength (min) |
KV/mm |
10 |
Details
PTFE resin,filled with some filling stuff,can prolong the life of
products and strengthen the performance,eg:Graphite,Carbon ,Glass fiber
,bronze
|
Glass Fiber: |
Increases compressive strength, rigidity and wear. |
|
Carbon: |
Increases compressive strength, hardness, wear, and load properties. |
|
Graphite: |
Reduces coefficient of friction |
|
Molybdenum Disulfide: |
Increases hardness, stiffness, and wear |
|
Bronze: |
Increases hardness and wear resistance |
