Polypropylene Teflon PTFE Sheet Teflon Moulding Fibreglass Plates
Product number:Polypropylene Teflon PTFE Sheet Teflon Moulding Fibreglass Plates
Quick Overview: Place of Origin: China (Mainland) Certification: ISO9001/14001
Send Inquiry
PDF DownLoad
Product Description

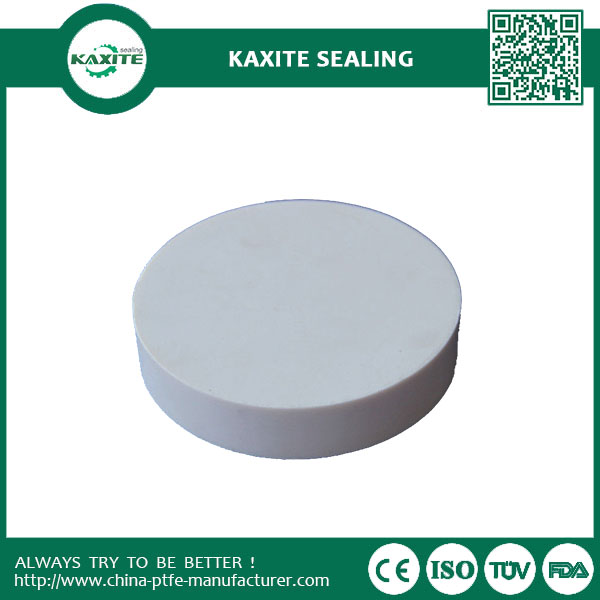

PTFE sheet is manufactured by technique of compacting, sintering, rotary cutting with PTFE granular resin. It has good dielectric performance and non-aging, best anti chemistry corrosion ability and wide applying intension range
Main Features:
Filled
PTFE ring has strong corrosion resistance and friction-resistance,By
adding filler such as glass fiber,carbon fiber,copper
powder,graphite,asbestos,MOS2,AL2O3,carbon powder,ceramic fiber,metal
powder,polyamide,PS,the hardness,compression strength and abrasion
resistance of the products is improved ,in addition,it will have good
heat conductivity and low heat expansion coefficient.
Glass Fiber:
Increases compressive strength, rigidity and wear.
Carbon:
Increases compressive strength, hardness, wear, and load properties.
Graphite:
Reduces coefficient of friction
Increases hardness, stiffness, and wear
Bronze:
Increases hardness and wear resistance
1.Heat resistance property---It is able to wok stably between -180°C to +260°C.
2.Excellent non-sticky property---It easier to remove those resin, dopes, oil and other sticky things.
3.Good mechanical property with no distortion and low friction coefficient.
4.Excellent insulation property.
Reduces creep and cold flow
Minimal effect on chemical and electrical properties
Good chemical resistance
Various types and amounts of carbon can be added to alter conductivity
Reduces initial wear
Increases strength
Molybdenum Disulfide:
Minimal effect on chemical and electrical properties
Increases dimensional stability and compressive strength
Not suitable for corrosive or electrical applications
