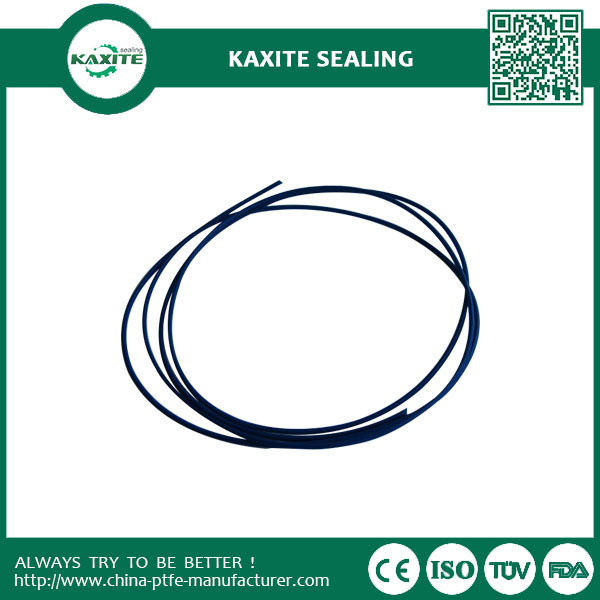

Ptfe Teflon Tube AWG Size High Chemical Resistance Colorful Thin Thickness
Product number:Ptfe Teflon Tube AWG Size High Chemical Resistance Colorful Thin Thickness
Quick Overview: Place of Origin: China (Mainland) Certification: SGS,ISO9001,ISO14001,FDA
Send Inquiry
PDF DownLoad
Product Description
Characteristics: Two kinds of ptfe pipes include molding and extruding pipes.
Ptfe mould pressing pipes (also called F4 pipes, Tiefulong pipes, Tefulong pipes) is made by molding polyflon
through pressing method under ordinary temperature, and then sinter it into different specifications of pipes.
Ptfe extruding pipes is manufactured by ram extruding method with ptfe granular resin.
Appearance request: It is homogeneous in structure, smooth surface, without rift, crack, air bubble, flatted and
mechanical scratch. But permits to a few exogenous impurity.
Application: -180°C~+250°C anti-corrosion and medium sealing pieces, insulation coat for wire.
Packaging & Delivery
Packaging Details:Plywood cases that don't need fumigation. Other packing is customized according to client's requirements
Delivery Detail: normally 15-30 days
High quality ptfe tube
100% virgin PTFE/Teflon tube are made by plunger extrusion of suspension polymerized PTFE resins. So that
the fiber orientation, and after drying, high temperature sintering, shaping process and made of hose,
usually packed in roll.
Main properties
|
Properties |
Unit |
Result |
|
Apparent density |
g/cm3 |
2.10-2.20 |
|
Tensile strength (min) |
MPa |
20 |
|
Ultimate elongation (min) |
% |
200 |
|
Residual Lubricant Content (max) |
% |
0.5 |
|
Dialectric Strength (min) |
KV/mm |
10 |
Features
Good insulation, assuring a safe system
good tensile strength
Chemical inertness of this PTFE teflon oil seal is good
solvent cement and threading joining
Biocompatibility
High thermal resistance
High chemical resistance in harsh environments
Low flammability
This PTFE teflon oil seal has low dielectric constant
Low water adsorption
best corrosion-resistant
Low coefficient of friction
Good weathering properties
PTFE resin,filled with some filling stuff,can prolong the life of products and strengthen the performance,eg:Graphite,Carbon ,Glass fiber ,bronze
|
Glass Fiber: |
Increases compressive strength, rigidity and wear. |
|
Carbon: |
Increases compressive strength, hardness, wear, and load properties. |
|
Graphite: |
Reduces coefficient of friction |
|
Molybdenum Disulfide: |
Increases hardness, stiffness, and wear |
|
Bronze: |
Increases hardness and wear resistance |
